Home GuiPack RotLab Properties TextAngle
See also: Alignment, PosX, PosY, Caption

TextAngle


Unit: SDL_rotlab
Class: TRotLab
Declaration: property TextAngle: integer;

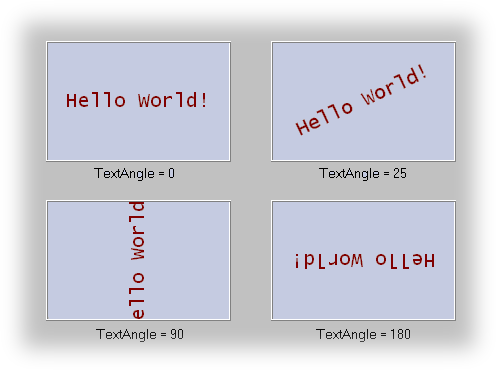

The property TextAngle controls the angle of the text in degrees. The following figure shows a few examples. If the text of the label is too long to be displayed within the control area (determined by Width and Height) it is clipped at the label boundaries.

Example: This property is used in the following example program (see http://www.lohninger.com/examples.html for downloading the code): rotlabel


Last Update: 2023-Dec-13
