Home ChartPack ColorScale Properties Orientation


Orientation


Unit: SDL_colorscale
Class: TColorScale
Declaration: property Orientation: TColScaleOrientation;

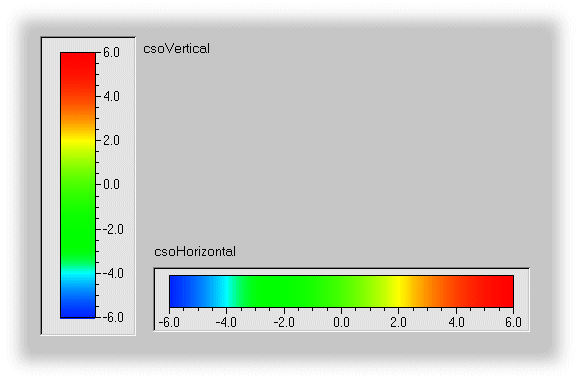

The property Orientation controls the direction of the color scale. Please note that changing the orientation does not (ex)change the width and height, nor the margins of the control. Thus when changing the orientation you have to adjust the width and height, and probably the margins.

Hint: In the Light Edition the orientation of the TColorScale component is restricted to csoHorizontal.

Example: This property is used in the following example program (see http://www.lohninger.com/examples.html for downloading the code): colscale


Last Update: 2023-Dec-13
