See also: Intersection

ClipBox

Unit:SDL_sline
Class:TSLine
Declaration:function ClipBox (bllx, blly, burx, bury: double; var x1, y1, x2, y2: double): boolean;

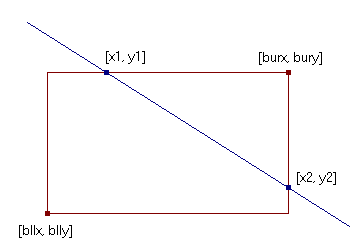

The function ClipBox calculates the intersection points [x1,y1] and [x2,y2] of the line with the rectangular box given by the parameters bllx, blly, burx, and bury. The function returns TRUE if the line cuts the boundary box, and FALSE if it lies outside the box.

Hint: Please note that the coordinates of the lower left corner always have to be smaller than the coordinates of the upper right corner.
