CalcSincLPKernel

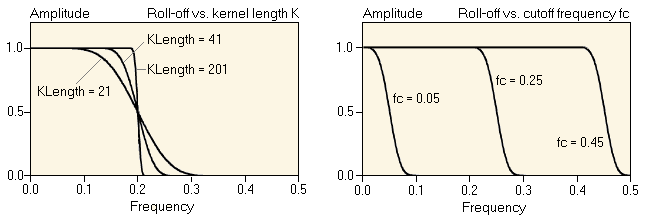

The procedure CalcSincLPKernel calculates the coefficients of a lowpass sinc filter. The coefficients which are returned in the array FilterKernel can be used by the function MovingKernelFilter to apply a lowpass filter to a signal. The open array [1] or vector [2] FilterKernel is automatically resized to contain KLeng elements. The parameter KLeng determines the rolloff of the filter. As a rule of thumb the transition bandwidth BW can be estimated by BW = 4/KLeng. The parameter CutOffFQ controls the cutoff frequency, which is specified as a fraction of the sampling rate. Thus the CutOffFQ parameter may assume values between 0 and 0.500. The following figure shows the influence of the kernel length on the rolloff at a fixed cutoff frequency (left diagram, fc = 0.2) and the rolloff of different cutoff frequencies using the same kernel length (right diagram, KLeng = 41).
The parameter Windowing determines the type of windowing applied to the filter kernel. Currently the following windowing modes are supported: 0 ... no windowing
